BPR-W Series
Wireless Proxy Router
Build up to 60 independent wireless networks on a single host with dedicated DHCP, NAT, SSID, and proxy egress.
Enterprise-grade wireless network infrastructure engineered for cross-border e-commerce, social media matrix operations, and high-density phone farm racks.
Up to 60 Sub-Routers
Up to 60 isolated sub-routers with independent DHCP, NAT, SSIDs, and MACs.
One-Click Batch Sync
Import spreadsheet configs and batch deploy to 10/60 SSIDs in seconds.
CloudLink VPS Chaining
1-click converts Alibaba Cloud, Tencent Cloud, AWS, or self-hosted VPS into dedicated clean proxy exits.
Fail-Safe Kill-Switch
Hardware-level interception immediately drops WAN if proxy disconnects.
Single-Node Hot Swap
Swap failed proxy nodes in place with live Ping check without re-importing.
Authentic Hardware MAC Library
Built-in genuine hardware MAC database to refresh router-side identity.
Internal Port Forwarding
Manage devices across subnets via LAN RDP/SSH with zero proxy bandwidth.
COMPREHENSIVE FEATURE MATRIX
8 Core Capabilities Engineered for High-Density Wireless Proxies
Integrating hardware AP controllers with the ALBulk suite, BPR-W delivers an all-in-one platform covering network isolation, leak protection, and agile multi-device operations.
Deep Network Isolation
Each sub-router maintains its own router MAC, DHCP pool, NAT routing, and proxy egress, broadcasting a dedicated SSID.
1:1 Mapping & CloudLink VPS Setup
Strict 1:1 binding between SSID and proxy exit. Powered by CloudLink to convert Alibaba Cloud, Tencent Cloud, AWS, or self-hosted VPS into dedicated clean proxy exits, dynamically bindable per SSID in 1-click.
Full Leak Prevention
Instantly cuts internet upon proxy failure without falling back to local IP. DNS and WebRTC locked strictly to proxy tunnels.
In-Place Node Maintenance
Modify failed nodes directly with real-time Ping latency checks without interrupting the remaining active sub-routers.
Massive Real Hardware MACs
Access millions of genuine IEEE 802 compliant router MAC addresses. Refresh sub-router MACs in bulk to renew router-side network fingerprints.
Internal Port Forwarding
Manage downstream devices across subnets via RDP/SSH over local LAN. Internal control traffic consumes zero proxy data and bandwidth.
Upstream NAS File Sharing
Configure custom rules allowing devices across isolated subnets to access shared upstream NAS assets or media repositories.
Dense Rack RF Tuning
For dense phone farm racks, independently adjust 5GHz channels, bandwidth, and RF power to eliminate co-channel interference.
APPLICATION SCENARIOS
Tailored for Cross-Border Operations and Phone Farm Matrices
Eliminate account cross-linking risks, physical cable clutter, and accidental IP leaks in daily operations.
Cross-Border E-Commerce & Media Matrix
- ✓One Store, One Network: Assign a dedicated SSID to each storefront with isolated routing and egress.
- ✓Fail-Safe Leak Protection: Drops internet instantly if proxy disconnects, preventing real IP leaks.
- ✓Synchronized Fingerprint Renewal: Periodically update router MAC and proxy exit in one click.
- ✓Optimized for Multi-Store Operations: Deeply compatible with TikTok Shop, Amazon, Shopee, and Lazada.
Large-Scale Phone Farms & Automation Racks
- ✓60 Mobile Devices per Host: A single BPR-W60 cleanly serves 60 mobile devices, decluttering racks.
- ✓Rack RF Optimization: Stagger 5GHz channels and tune transmit power across adjacent units.
- ✓Agile In-Place Hot Swap: Replace a single dropped proxy node in seconds without interrupting other running units.
- ✓Zero-Proxy Control: Manage devices via internal port forwarding entirely across the local switch fabric.
ARCHITECTURE & RF ENGINEERING
Strict Leak Prevention, Zero-Proxy Control, and Dense RF Tuning
Hardware-Level Traffic Interception
Strict outbound traffic interception per sub-router. If a proxy drops, outbound connectivity is instantly terminated, blocking any non-proxied data from reaching the local broadband gateway.
Cross-Subnet Control with Zero Proxy Overhead
Administrators on the physical LAN port can manage downstream devices across subnets via RDP (3389) or SSH. Internal management traffic consumes zero proxy data and zero proxy bandwidth.
Tailored 5GHz RF Tuning for Dense Multi-Tier Racks
For dense installations with multiple BPR-W units, assign separate 5GHz channels (stagger 36, 44, 149, 157) and tune TX power to eliminate co-channel RF noise across phone farm racks.

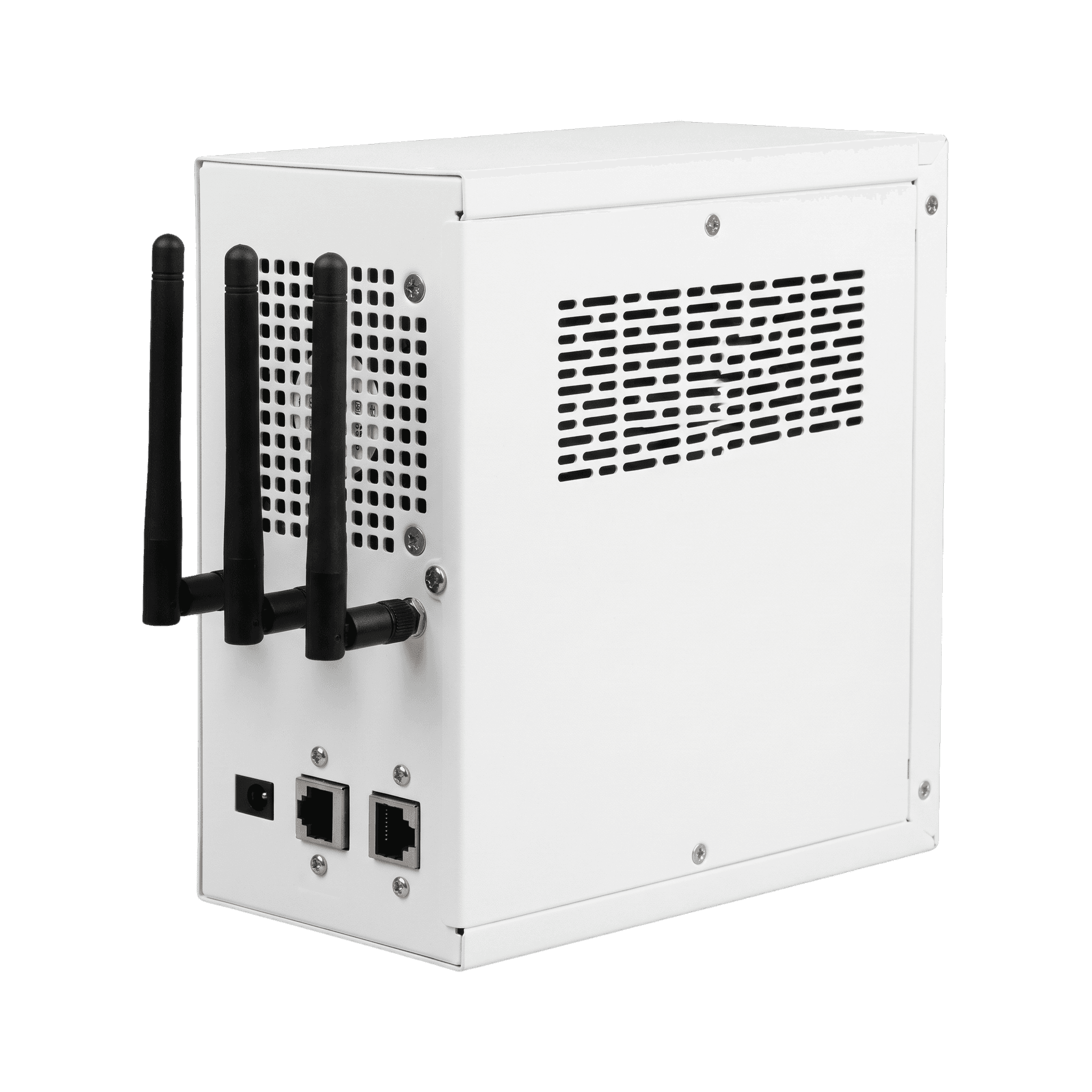

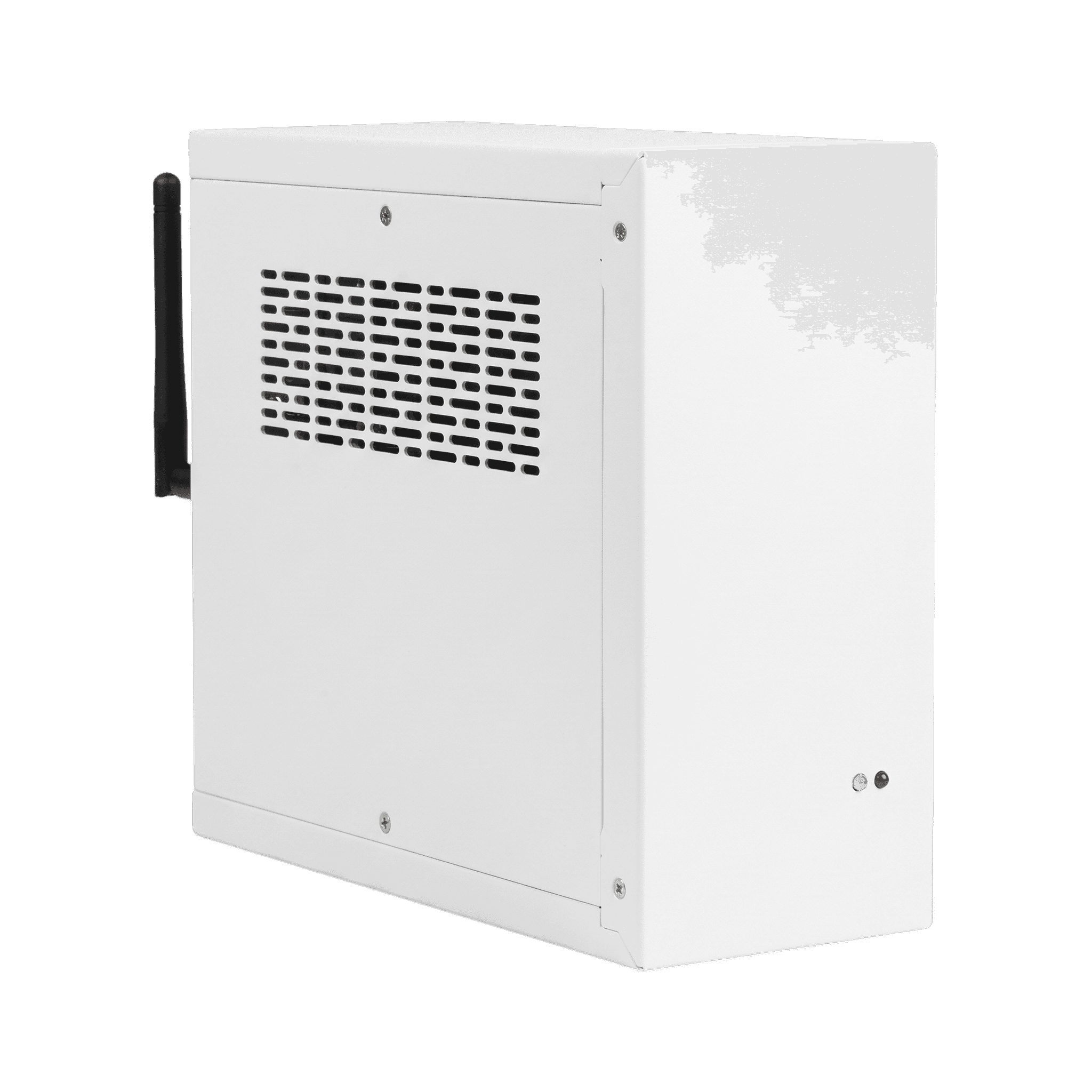

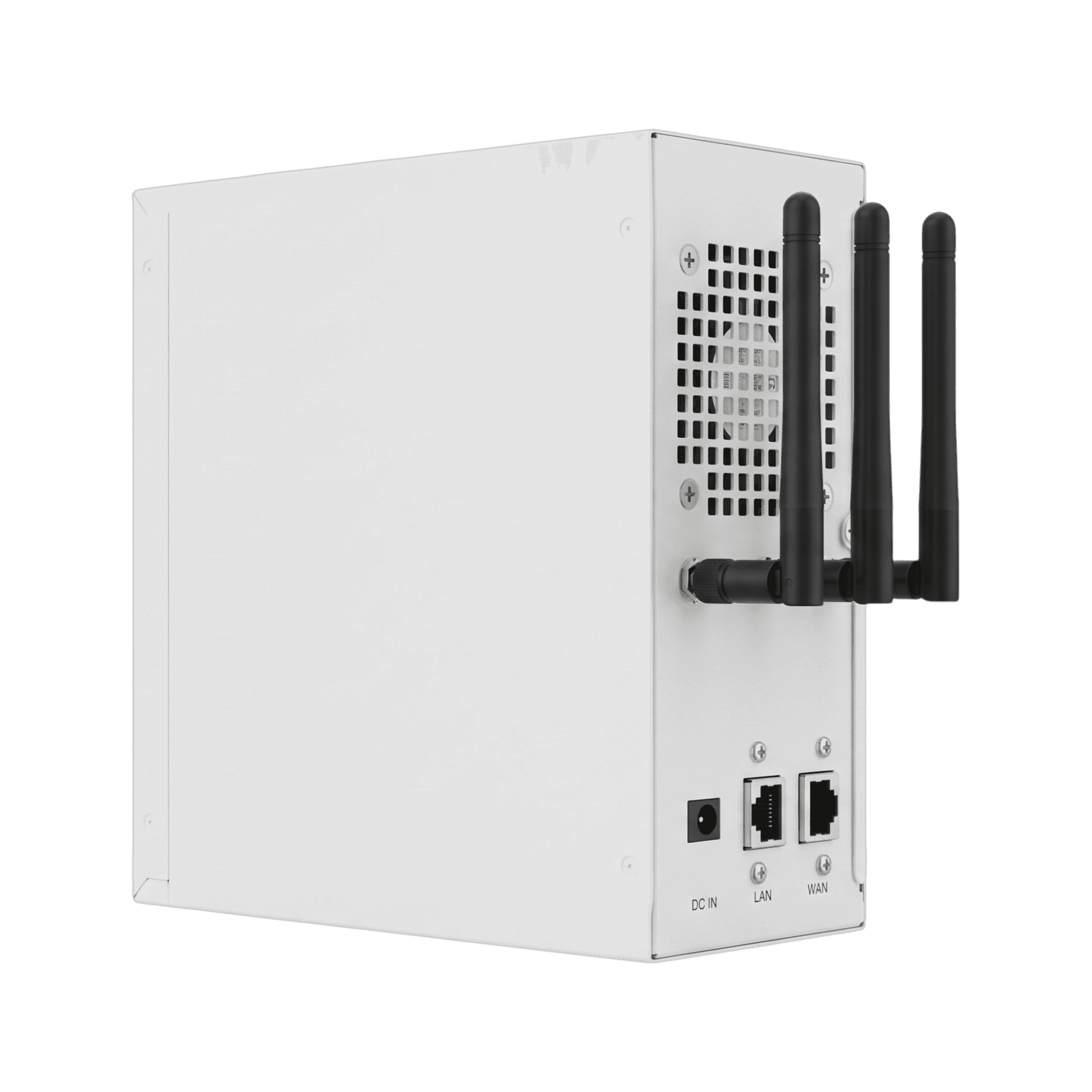

PHYSICAL I/O & CHASSIS
Full Gigabit Network Interfaces & Rugged Metal Chassis
High-speed 1300 Mbps 5GHz wireless coverage with full Gigabit wired ports and external high-gain antennas.
Gigabit WAN Port
Gigabit RJ45 port connecting to upstream broadband or gateway.
Gigabit LAN Port
Connects management workstations and switches for zero-proxy control.
Dual 5GHz Antennas
High-gain omnidirectional antennas supporting 802.11ac up to 1300 Mbps.
Industrial DC Power
Secure locking DC power inlet ensuring 24/7 continuous operation.
SPECIFICATIONS & SELECTION
Two Available Models Tailored for Scalable Deployments
| Specifications | BPR-W10 | BPR-W60 | Deployment Guidance |
|---|---|---|---|
| Independent Sub-Routers | 10 | 60 | W10 for store teams; W60 for dense device matrices |
| Broadcast SSIDs | 10 (Independent) | 60 (Independent) | Independent broadcasting with SSID hide support |
| Proxy Egress Capacity | Up to 10 nodes | Up to 60 nodes | SOCKS5 & HTTP protocols; API integration supported |
| CloudLink VPS Nodes | Supported (Up to 10 Nodes) | Supported (Up to 60 Nodes) | 1-click converts Alibaba Cloud, Tencent Cloud, AWS, or self-hosted VPS into dedicated clean proxy exits, dynamically bindable per SSID |
| Wired Interfaces | 1 × GbE WAN + 1 × GbE LAN | 1 × GbE WAN + 1 × GbE LAN | Full Gigabit wired network interfaces |
| Wireless Standard | 5 GHz，最高 1300 Mbps | 5 GHz，最高 1300 Mbps | 802.11a/b/g/n/ac with dual high-gain antennas |
| Management Platform | ALBulk 一体化管理系统 | ALBulk 一体化管理系统 | Batch setup, hot-swap, MAC library, RF channel tuning |
FAQ
Frequently Asked Questions
How many devices can connect to a single BPR-W?
BPR-W10 supports 10 isolated networks and BPR-W60 supports 60. Each sub-router handles 1-3 devices comfortably, allowing a single BPR-W60 to stably run 60 mobile devices simultaneously.
How does the fail-safe Kill-Switch operate?
ALBulk audits outbound tunnels continuously. If a proxy disconnects, outbound WAN access on that SSID is terminated in milliseconds without falling back to local broadband.
What proxy protocols are supported? Can I integrate private VPS or third-party APIs?
Supports SOCKS5 and HTTP protocols natively. Features CloudLink to convert Alibaba Cloud, Tencent Cloud, AWS, or self-hosted VPS into dedicated clean proxy exits, dynamically bindable per SSID in 1-click. Also integrates with third-party commercial proxy provider APIs.
How to prevent RF interference with multiple units in a dense rack?
In dense phone farm racks, assign staggered 5GHz channels (e.g., 36, 44, 149, 157) and tune TX power per unit in ALBulk to eliminate co-channel RF interference.
