Connecting On-Site AI Services with Controllable Cloud Access.
Enterprise network gateway built for on-site AI infrastructure. Delivers multi-device Cloud Outbound isolation and fixed Cloud Inbound reverse tunnels, operating reliably at 12W fanless power.
Eliminates personal proxy fluctuations, account risk flags, and unreachable on-site hosts. Preserves business files on-site while maintaining secure, persistent inbound and outbound connectivity.
Engineered Network Gateway for On-Site AI Infrastructure.
Clear separation of Cloud Outbound, Cloud Inbound, and on-premises security boundaries.
Multi-Task Cloud Outbound
Devices share egress routes or bind distinct outbound proxy IPs. Ideal for continuous data scraping, RAG updates, and team-wide cloud LLM API access.
Fixed VPS Cloud Inbound
Powered by CloudLink to convert Alibaba Cloud, Tencent Cloud, AWS, or self-hosted VPS into dedicated clean proxy exits in 1-click. Securely maps internal Agent, API, and Web services to designated external ports for remote teams.
12W Fanless Industrial Body
Dual GbE ports (1×LAN, 1×WAN) housed in a CNC anodized aluminum chassis. 12W rated power draw with fanless 0 dB operation for 24/7 reliability.
Real-World Tasks Powered by AI Gateway Routing.
Every scenario solves tangible workflow friction with concrete hardware and network flows.
AI Data Ingestion & Continuous RAG Updates

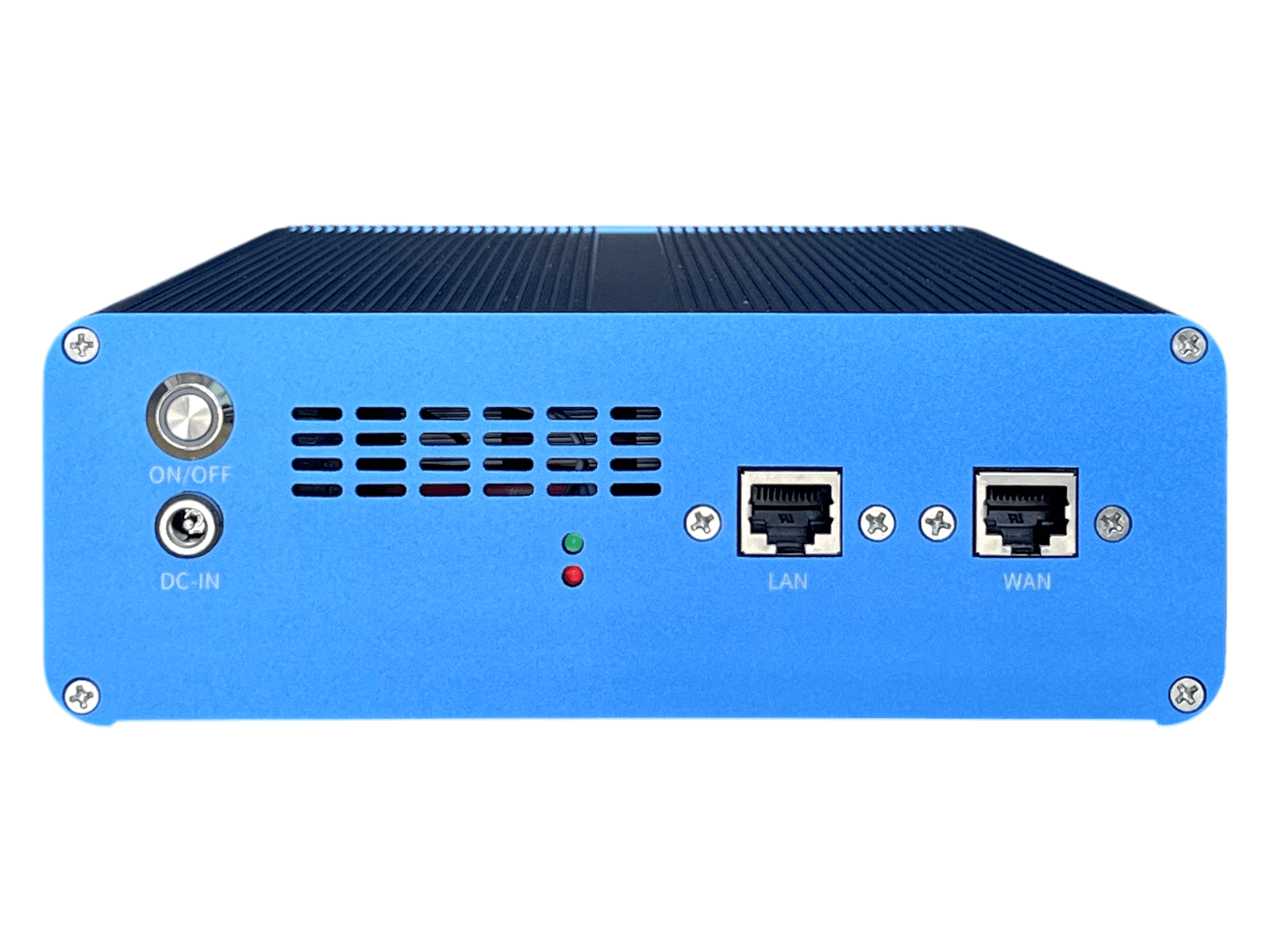

Industrial Panel Interfaces and Thermal Body.
Streamlined physical ports engineered for GbE wired links, status monitoring, and 24/7 industrial uptime.
Gigabit LAN Port
Connects local switches, AiA agent hosts, or on-site PCs with wire-speed GbE.
Gigabit WAN Uplink
Uplinks to on-site fiber modems or core routers for resilient cloud communication.
Industrial DC Power
Industrial locking DC inlet with external adapter for uninterrupted 24/7 power.
Physical Power Switch
Tactile hardware power button on the front panel for easy on-site reboots.
Status LED Indicators
Dual-color LEDs: solid red for power, flashing green for real-time link activity.
Anodized Aluminum Chassis
Classic blue anodized aluminum chassis offering passive cooling and 0 dB zero noise.
12W Ultra-Low Power
Rated at just 12W, ensuring minimal electrical footprint for cabinet deployments.
Compact Form Factor
185×264×64mm footprint, weighing ~900g, easily installed in shelves or cabinets.
AiR-100 vs. AiR-200 Model Comparison.
Single series comparison table. Both models share the 12W fanless body and dual GbE architecture.
| Specification | AiR-100 Standard | AiR-200 Enterprise |
|---|---|---|
| Max Supported Devices | 100 Devices | 200 Devices |
| Max Outbound Proxy IPs | 100 IPs | 200 IPs |
| Concurrency Capacity | 100 Concurrent Devices | 200 Concurrent Devices |
| Processor | 4-Core 4-Thread Industrial CPU | Intel Core i5 (4C / 4T) |
| System Memory | 2GB RAM | 4GB RAM |
| Local Storage | 32GB Industrial Flash | 32GB SSD SSD Storage |
| Network Interfaces | 1 × LAN + 1 × WAN (Dual GbE RJ45) | 1 × LAN + 1 × WAN (Dual GbE RJ45) |
| Cloud Inbound Port Capacity | 50,000+ available mapped ports | 50,000+ available mapped ports |
| Wireless / Cellular | Pure wired · No WiFi / 4G / 5G | Pure wired · No WiFi / 4G / 5G |
| Cooling / Noise | Passive aluminum cooling · 0 dB | Passive aluminum cooling · 0 dB |
| Rated Power | 12W | 12W |
| Dimensions & Weight | 185 × 264 × 64 mm · ~900g | 185 × 264 × 64 mm · ~900g |
| Recommended Deployment | Small studios, AI teams under 100 devices | Enterprise matrices, 100-200 devices |
Ecosystem Matrix: Clean Separation of Network, Runtime, and Compute.
AiR governs inbound/outbound connectivity and network boundaries, powering on-site AI.
Route B (On-Site Hosts): Links to AiA Resident Hosts (tasks) and AE-2000 Edge Computers (private LLMs) over LAN.
Frequently Asked Questions.
Understand gateway functions, Cloud Outbound vs Inbound, and multi-device synergy.
Build Resilient AI Gateway Connectivity for Your Site
Turnkey network survey, custom VPS port mapping planning, and bundled appliance delivery.
