PCR-W Series
Wireless Proxy Chaining Router
Dual-Chaining Architecture · Phone Farm Security Gateway
Dedicated to high-density phone farms, cross-border network penetration, and anti-tracking operations. Decouples Relay transit acceleration and Landing geolocation to shield real source IPs.
Dual-Chaining Architecture
Relay node handles cross-border penetration & acceleration, while Landing handles pinpoint geo-location.
Prevent Local IP Leaks
Multi-hop secondary encapsulation strictly prevents reverse tracing and mass account correlation.
All-Protocol Proxy Engine
Native high-performance support for VMess, VLESS, Shadowsocks, HTTPS, and SOCKS5/HTTP protocols.
CloudLink VPS Chaining
One-click converts Alibaba Cloud, Tencent Cloud, AWS, or self-hosted VPS into dedicated clean proxy exits, dynamically bindable per SSID with zero Linux scripting.
CORE ARCHITECTURE
Relay + Landing Dual-Chaining Architecture Mechanics
Decoupling transit acceleration from target egress cuts the tracking chain at the hardware layer, shielding device fleets.
End-to-End Dual-Chaining Dataflow Pipeline
Decoupled Transit & EgressPhone Farm Terminals
PCR-W Gateway
Relay Transit Layer
Landing Geolocation
Global Cloud Services
Seamless Transit Hot-Swap, Long-Term Session Persistence
Decoupled layers ensure that switching transit relay routes does not alter the landing IP or drop active terminal sessions, eliminating sudden disconnect bans.
End-to-End Re-Encapsulation, Zero Real Source IP Leakage
Local traffic undergoes dual re-encapsulation between Relay and Landing nodes. Target services and intermediate sniffers only see the relay hop, completely isolating local broadband.
Up to 40 Isolated DHCP / NAT Pools & Authentic MACs
A single unit creates up to 40 independent virtual sub-routers, each with its own DHCP subnet, NAT state table, and authentic hardware MAC address.
APPLICATION SCENARIOS
Engineered for High-Security, Restricted Networks & Anti-Tracking
Eliminate device clustering, cross-border throttling, and accidental real IP exposure.
Restricted Cross-Border Networks & Overseas Branches
- ✓Enhanced Relay Penetration: Establishes anti-interference encrypted tunnels across high-quality transit routes, eliminating packet drops.
- ✓Direct Landing Connectivity: Terminals connect through dedicated SSIDs directly to target region egress nodes for seamless tool integration.
- ✓Multi-Group Centralized Management: Partitions 10/40 isolated wireless subnets per unit, managed centrally via Gigabit LAN.
High-Security Operations & Deep Anti-Tracking Egress
- ✓Dual-Hop Physical Shield: Relay breaks local physical egress traces, while Landing provides pure target identity with dual encryption.
- ✓Omni-Directional Hard Kill-Switch: Hardware instantly drops WAN traffic upon any tunnel anomaly, strictly preventing fallback to local broadband.
- ✓Complete Fingerprint Renewal: Millions of IEEE-compliant hardware MAC addresses allow bulk resets to break device clustering.

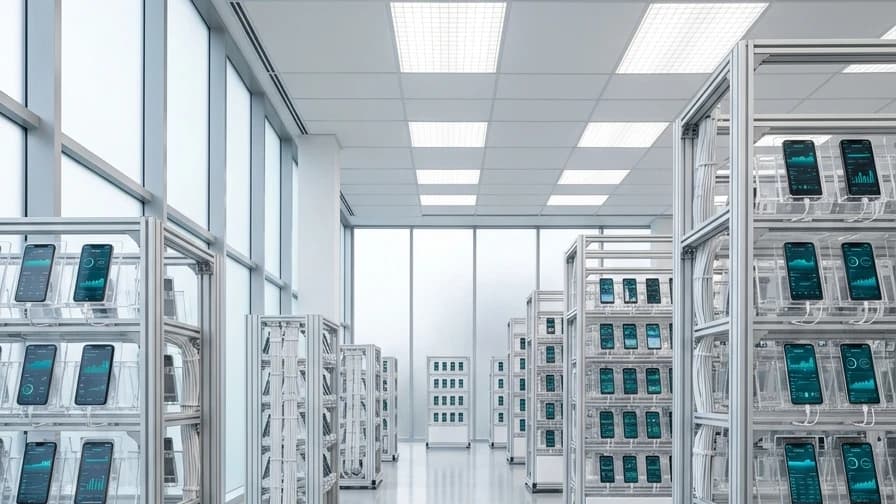

High-Density Phone Farm Operations & Matrix Anti-Banning
- ✓1:1 Isolated Subnets & MACs: A single PCR-W40 cleanly hosts 40 smartphones with dedicated SSIDs, pools, and authentic MACs, eliminating RF bleed.
- ✓Session Keepalive on Transit Switch: Seamlessly routes around relay jitter without changing landing IP, keeping account sessions alive.
- ✓Zero-Proxy LAN Fleet Control: Control 40 devices via Scrcpy / ADB over Gigabit LAN with zero consumption of costly external proxy data.
SECURITY ARCHITECTURE
All-Protocol Proxy Support & Fail-Safe Defense System
Native support for mainstream encrypted proxy protocols backed by hardware-level fail-safe gating.
VMess / VLESS
RecommendedHigh-strength encryption and low-latency handshakes with dynamic traffic obfuscation to bypass deep packet inspection.
Shadowsocks
MainstreamMature, lightweight symmetric encryption with low CPU overhead and superior packet loss resilience for high concurrency.
HTTPS 代理
Stealth TLSEncapsulates proxy traffic into standard TLS (port 443), blending seamlessly with ordinary web traffic.
SOCKS5 / HTTP
UniversalIndustry standard proxy protocols, fully compatible with global residential, datacenter, and mobile proxy providers.
Hard Kill-Switch Leak Cutoff
DEFENSE 01Audits multi-hop proxy health in milliseconds. Upon detecting node failure, outbound traffic is hard-blocked at the hardware layer without falling back to local IP.
Encrypted DNS Anti-Pollution
DEFENSE 02All DNS queries are strictly forwarded through encrypted proxy tunnels to secure remote resolvers, eliminating ISP DNS poisoning and query logging.
WebRTC STUN Shielding
DEFENSE 03Rewrites network stack WebRTC STUN signaling behavior, preventing target platforms from probing internal private IPs through browser holes.
🏷️ Authentic Hardware MAC Address Pool
Built-in library of millions of genuine IEEE 802 OUI compliant hardware MAC addresses. Reset sub-router physical fingerprints in one click to break clustering.
📦 Hardware-Level Subnet & NAT Isolation
Up to 40 independent sub-routers with dedicated DHCP pools (192.168.x.1/24), independent connection tracking tables, and isolated ARP caches preventing broadcast bleeding.
REMOTE OPS & LAN SWITCHING

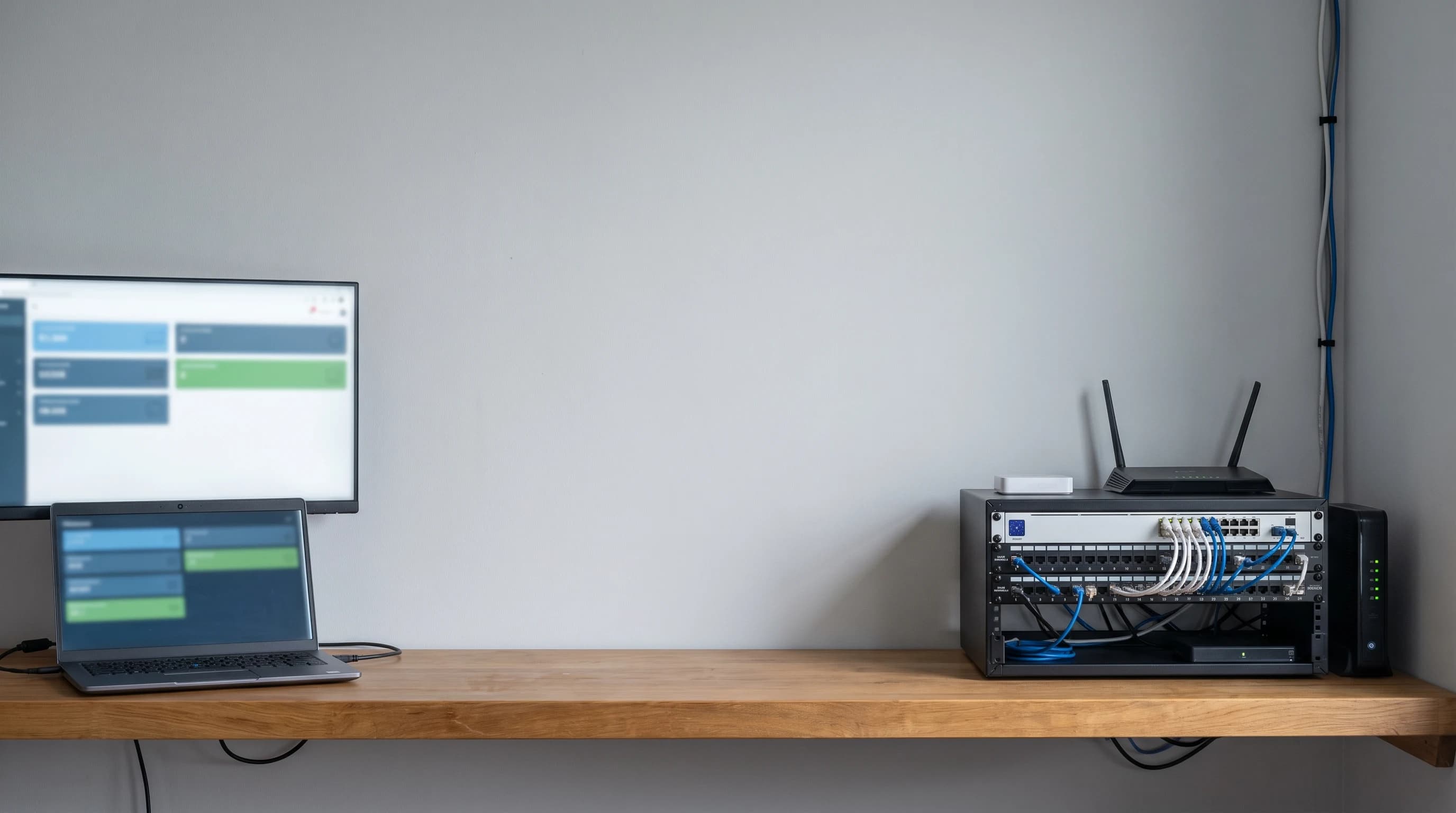

CloudLink VPS Chaining & Zero-Proxy LAN Fleet Management
Turn cloud VPS instances into private proxy hops while controlling devices locally over Gigabit LAN with zero proxy data cost.
CloudLink: 1-Click Self-Hosted VPS to Dedicated Proxy
Instant VPS to Proxy Node Conversion
No complex Linux terminal commands. CloudLink enables one-click conversion of Alibaba Cloud, Tencent Cloud, AWS, or self-hosted VPS into dedicated clean proxy exits, dynamically bindable per SSID or Relay/Landing role.
Flexible Transit or Landing Role Assignment
Assign instances as Relay transit or Landing exits freely. Support 100% self-hosted pipelines or hybrid self-hosted relays paired with residential landing exits.
In-Place Instant Node Replacement
Replace dropped or blocked nodes instantly in the dashboard without rebooting the hardware or reconnecting client devices.
Internal Port Forwarding & Wire-Speed Control Topology
⚡ 1000M LAN Direct Connect · 0 Proxy Bandwidth📋 Bulk TXT Import
Batch import Relay and Landing configurations via TXT file with automated pairing across all subnets.
📶 Batch SSID Generation
Batch generate 10 or 40 unique SSIDs and credentials with one-click broadcast hiding.
🏷️ Bulk MAC Renewal
Renew hardware network fingerprints across all subnets in bulk using millions of authentic hardware MAC addresses.
PHYSICAL I/O & CHASSIS

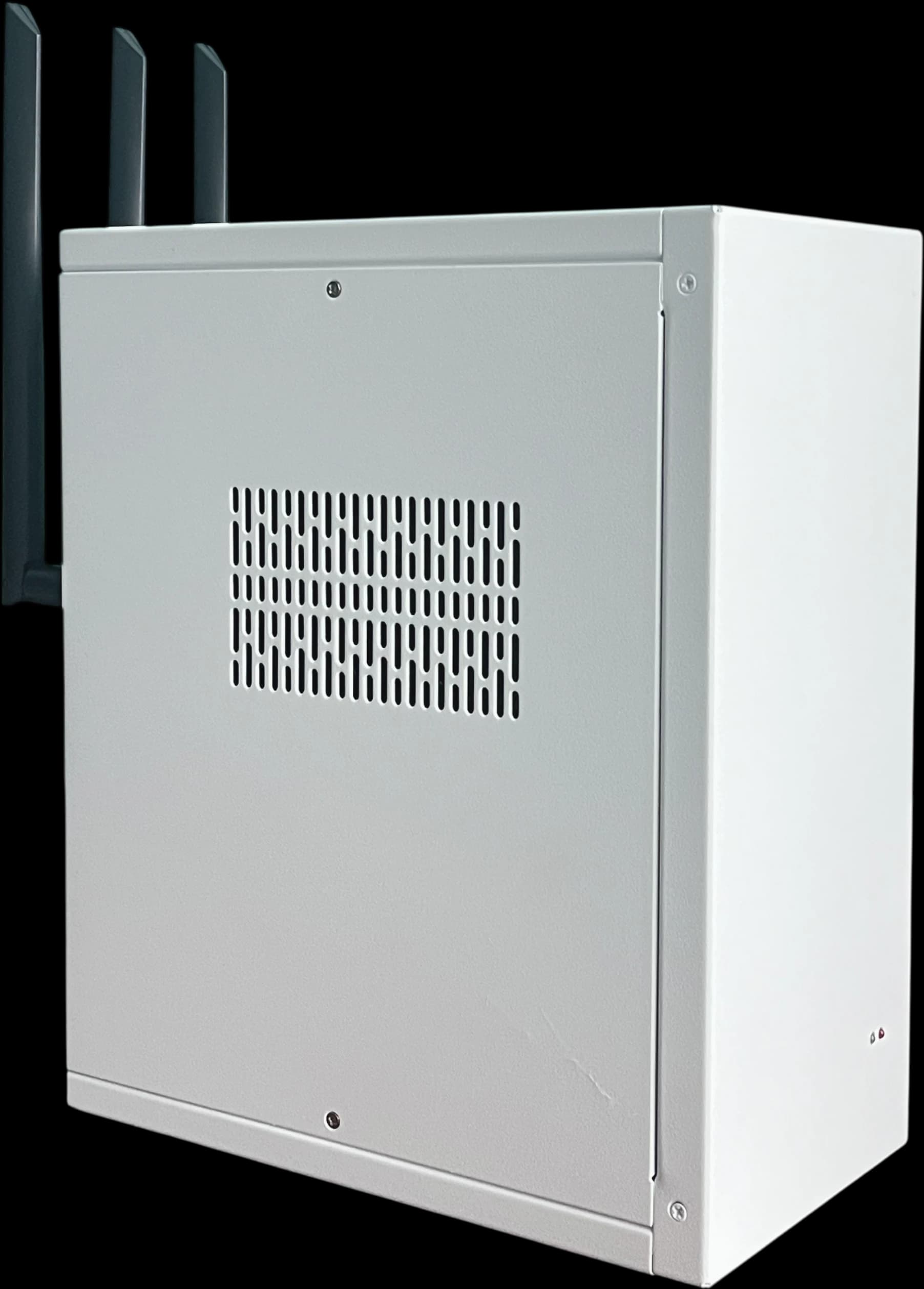

Full Gigabit Network Interfaces & Rugged Metal Chassis
High-speed 1300 Mbps 5GHz wireless coverage with dual Gigabit wired ports and external high-gain antennas.

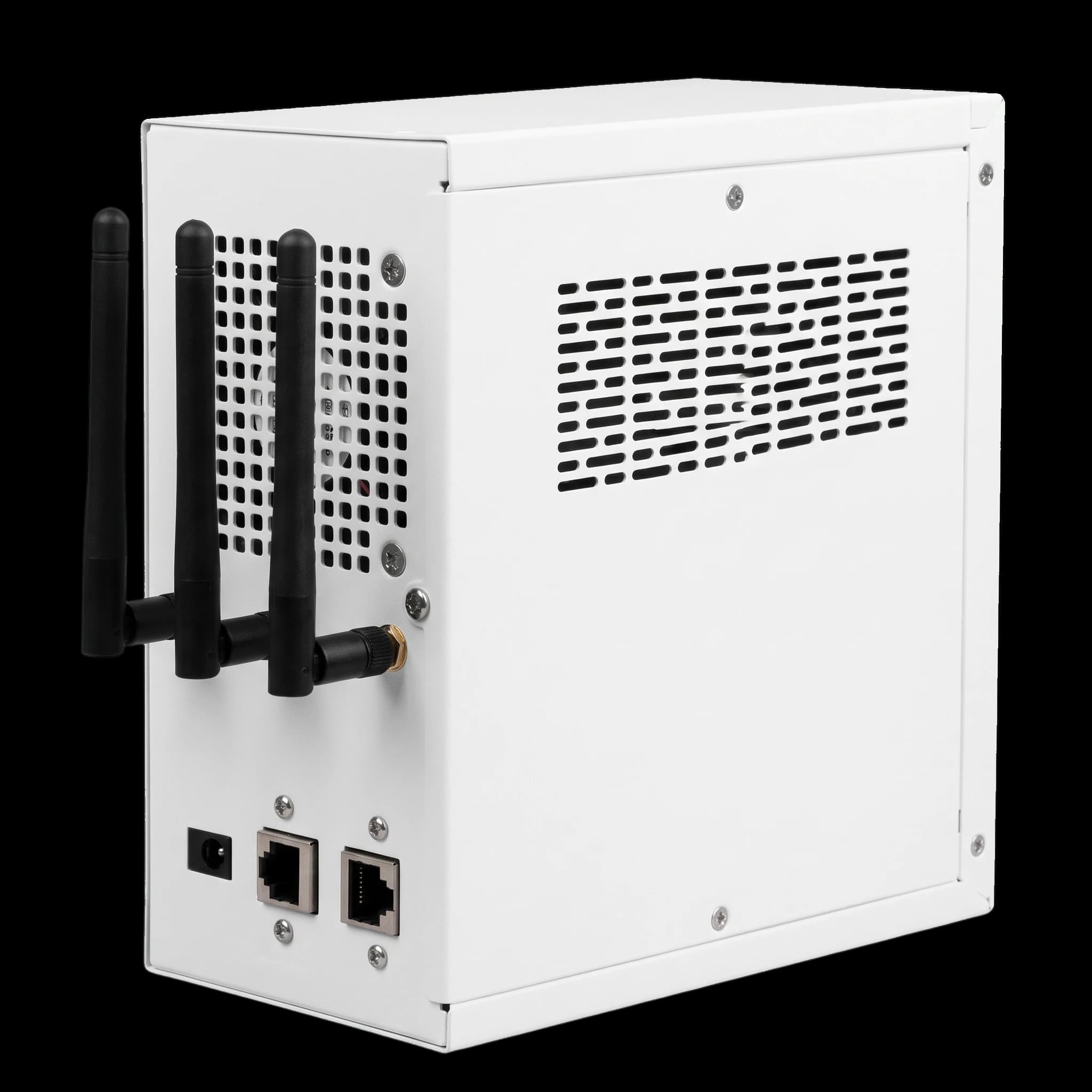

Gigabit WAN Port
Gigabit RJ45 port connecting to upstream fiber broadband or enterprise firewall.
Gigabit LAN Port
Directly connects management PC or switch for zero-proxy-overhead device control.
Dual 5GHz Antennas
Standard SMA threaded connectors with dual high-gain antennas, extendable via RF cables.
Industrial DC Power

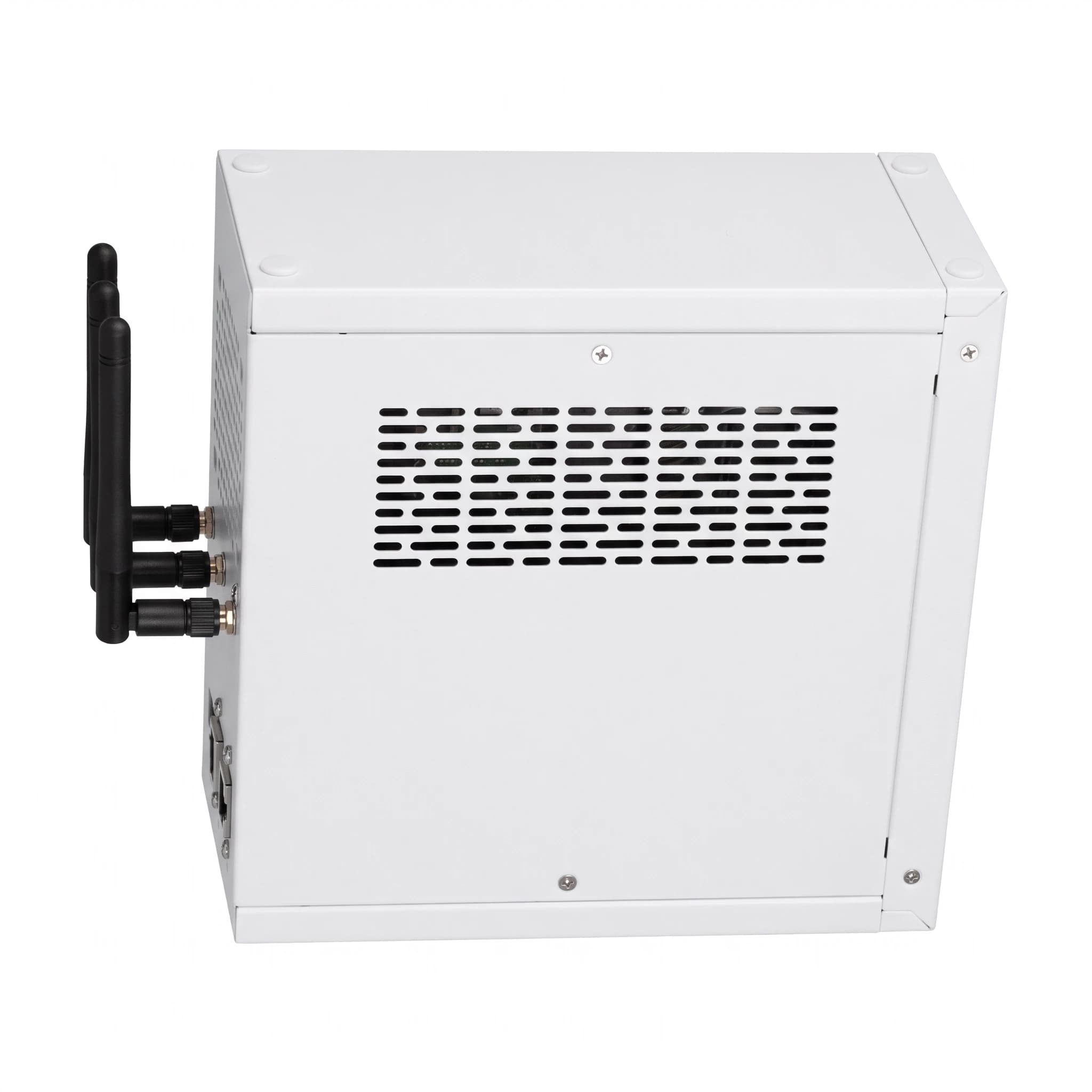

Standard 12V DC input with internal smart thermal fan for 24/7 continuous operation.
SPECIFICATIONS & SELECTION
Two Available Models Tailored for Scalable Deployments
| Specifications | PCR-W10 | PCR-W40 | Deployment Guidance |
|---|---|---|---|
| Sub-Routers & SSIDs | 10 Sub-Routers | 40 Sub-Routers | W10 for branch offices; W40 for dense phone farm matrices |
| Proxy Chain Pairs | 10 Pairs (Relay+Landing) | 40 Pairs (Relay+Landing) | Each SSID binds dedicated Relay+Landing pair with decoupled routing |
| Isolated DHCP & NAT | 10 Isolated Engines | 40 Isolated Engines | Independent internal subnet pools and NAT translation per sub-router |
| Supported Protocols | VMess · VLESS · Shadowsocks · HTTPS · SOCKS5 · HTTP | Native support for mainstream encrypted protocols and commercial APIs | |
| CloudLink VPS Nodes | Supported (Up to 10 Nodes) | Supported (Up to 40 Nodes) | 1-click converts Alibaba Cloud, Tencent Cloud, AWS, or self-hosted VPS into dedicated clean proxy exits, bindable as Relay or Landing nodes |
| Fail-Safe Protection | Kill-Switch Hardware Cutoff + IP/DNS/WebRTC Shield | Instant WAN cutoff on anomaly; zero fallback to local broadband | |
| Wireless Standard | 5 GHz band, up to 1300 Mbps，IEEE 802.11a/b/g/n/ac，dual high-gain antennas | 5GHz high-speed transmission with RF channel staggering support | |
| Management Platform | Built-in ALOS suite + Millions of authentic router MAC addresses | Batch setup, hot-swap, MAC library, zero-proxy port forwarding | |
| Recommended Load | 10 Devices (1:1) | 40 Devices (1:1) | Recommended 1:1 binding between device and proxy chain for best isolation |
FAQ
Frequently Asked Questions
What is the Relay + Landing dual-chaining architecture?
Conventional single-hop proxies couple transit and exit into one link; when transit fluctuates, sessions disconnect and risk IP exposure. PCR-W decouples transit acceleration (Relay) and target egress (Landing): Relay penetrates firewalls, while Landing provides geolocation. When Relay switches routes, the Landing IP remains fixed, preserving sessions.
How does CloudLink VPS chaining work? Are Linux scripts needed?
Zero command-line scripting required. CloudLink enables one-click conversion of Alibaba Cloud, Tencent Cloud, AWS, or self-hosted VPS into dedicated clean proxy exits, dynamically bindable as Relay or Landing nodes directly within the ALOS dashboard.
Why does internal Port Mapping consume zero external proxy data?
PCR-W integrates a Gigabit hardware switch engine. When management PCs connect to the LAN port, Scrcpy screen mirroring, ADB (5555), RDP, and VNC traffic to downstream phones are switched locally at wire speed. No management traffic ever traverses the external proxy tunnel, costing zero data fees.
How should I choose between PCR-W10 and PCR-W40?
PCR-W10 hosts 10 isolated sub-routers and 10 proxy chain pairs, perfect for branch offices, workstation desks, and individual high-security operations. PCR-W40 hosts 40 isolated subnets and 40 chain pairs, providing 1:1 dedicated Wi-Fi and real MACs for up to 40 phones in dense rack operations.
